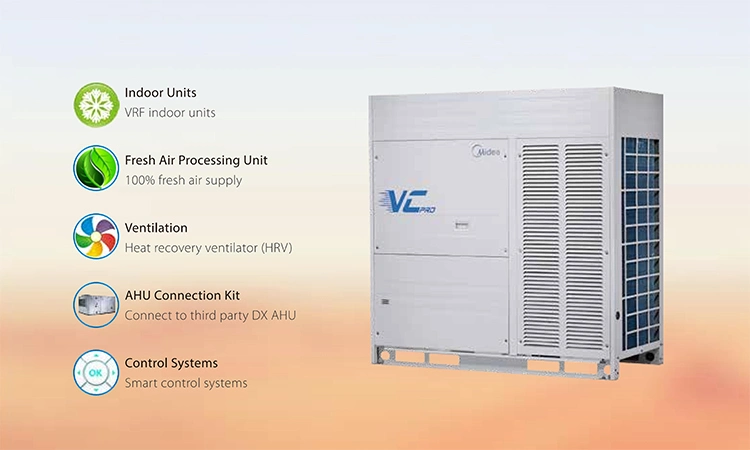

As the leading VRF product, V6 boasts substantial benefits such as the single capacity can be
up to 90HP which is leading in HVAC industry; EVI compressor significantly increases heating
and cooling capacity under extreme conditions, EMS realizes that evaporating temperature
(in cooling) and condensing temperature (in heating) are automatically adjustedaccording to
both indoor and outdoor temperature to maximize the comfort and energy efficiency. Besides,
the intelligent control system adds more value to V6 product.


Capacity		8HP-90HP
Power supply		220/3/50(60)V/Ph/Hz
Cooling	Capacity	22.4KW-255KW
		76.5-870.9kBtu/h
	Power input	5.25-82.53KW
	EER	4.27-3.25kW/kW
Compressors	Type	DC inverter
Fan motors	Type	DC
	Max. ESP	20 default(Pa); 60 Customization Option
Refrigerant	Type	R410A
Aiflrow rate		11000-25000 m3/h
		57-68dB(A)
Ambient temp	Cooling	-5 to 55ºC

Product Advantages

1.Wide Capacity Range
For single unit, the footprint is small and maximum capacity is up to 30HP, For combined units,
maximum three 30HP units can be combined with capacity up to 90HP.

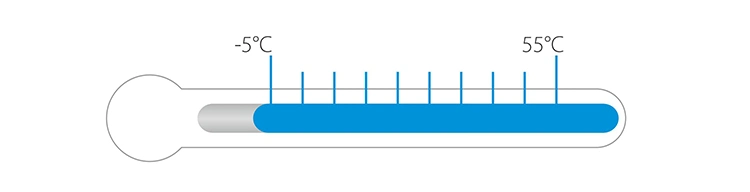

2.Wide Operation Range
The VC Pro VRF can Operate stably in a wide ambient temperature range: from -5ºC to 55ºC in
cooling mode.

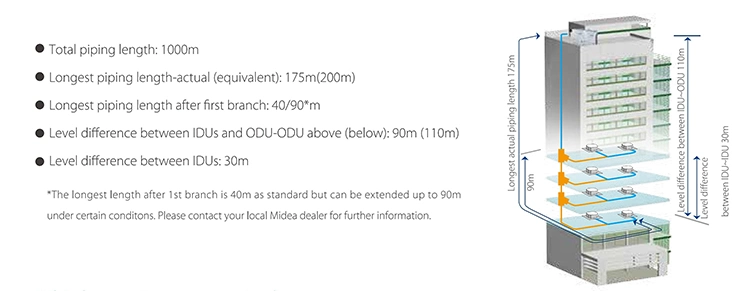

3.Long Piping Capability

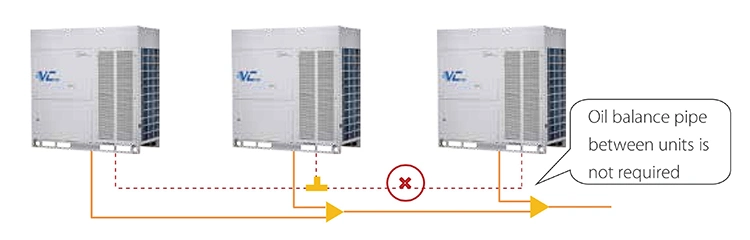

4.Oil Balance pipe not required
With the new oil management system, there is no need of oil balance pipe.
